9PCS Diamond Grinding Disc Set for Concrete Floor - 4/5/6/7 Inch Hard Bond with T Shape Segments and M14 Screw for Angle Grinde

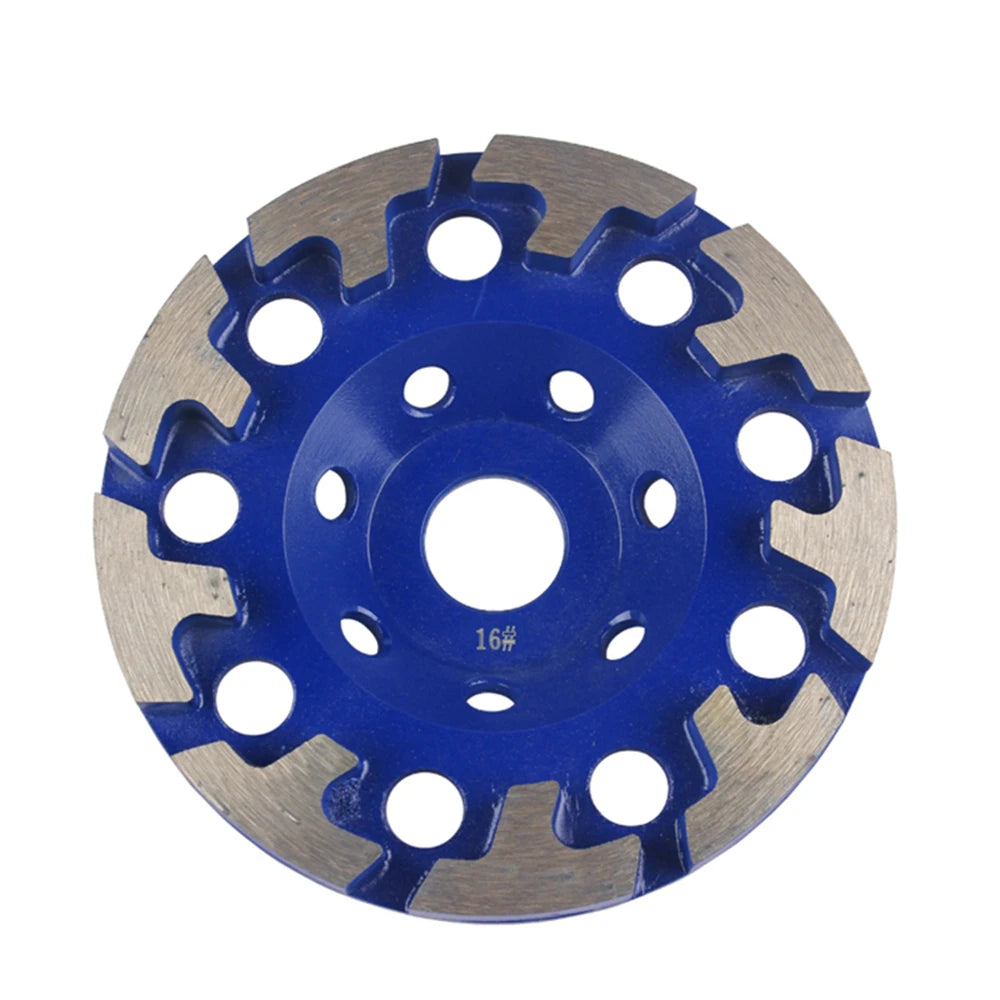

Shape "T" cup wheels are a variety of different styles and grit sizes.It is used for surface prep, paint and glue epoxy thin film removal.
"T" cup wheel is longest life of all cup wheels and fast and very aggressive.it is used with hand grinders along with the Terrco Edger and Flex-Shaft machines
The hardness of the bond of these diamond cup wheels can be customized according to the hardness of the workpiece.
T type Cup Grinding Wheels achieve aggressive grinding and fast stock removal and they are our newly developed diamond cup wheels.
Product Name: 4/5/6/7 Inch Metal Bond Diamond Grinding Disc with T Shape Segments for Stone and Concrete Floor
Material: T Shape Diamond Segments + 65 Mn Steel Metal Blank
Diameter: 4 Inch (D100mm)/5 Inch (D125mm)/6 Inch (D150mm)/7 Inch (D180mm)
Segments Size: T Shape Segments*4/7/9/12T

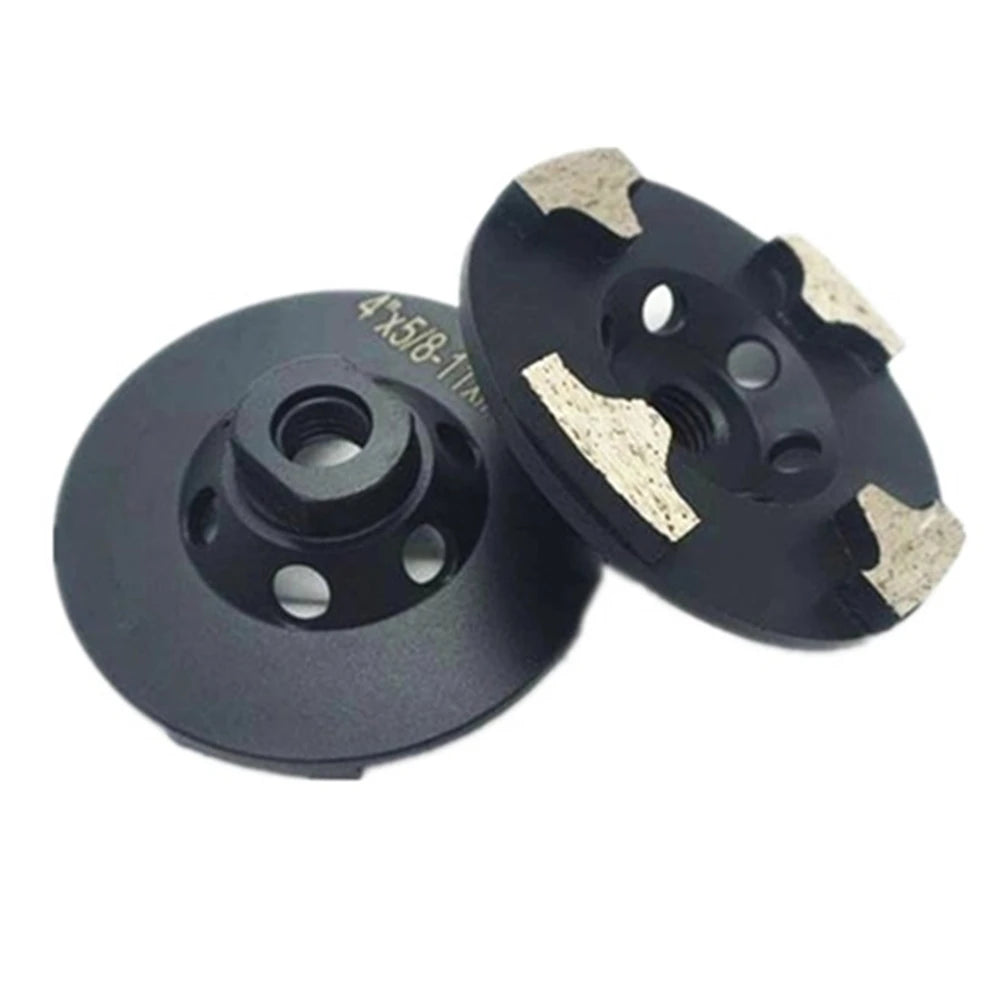

4 Inch Disc-4 T Shape Segments

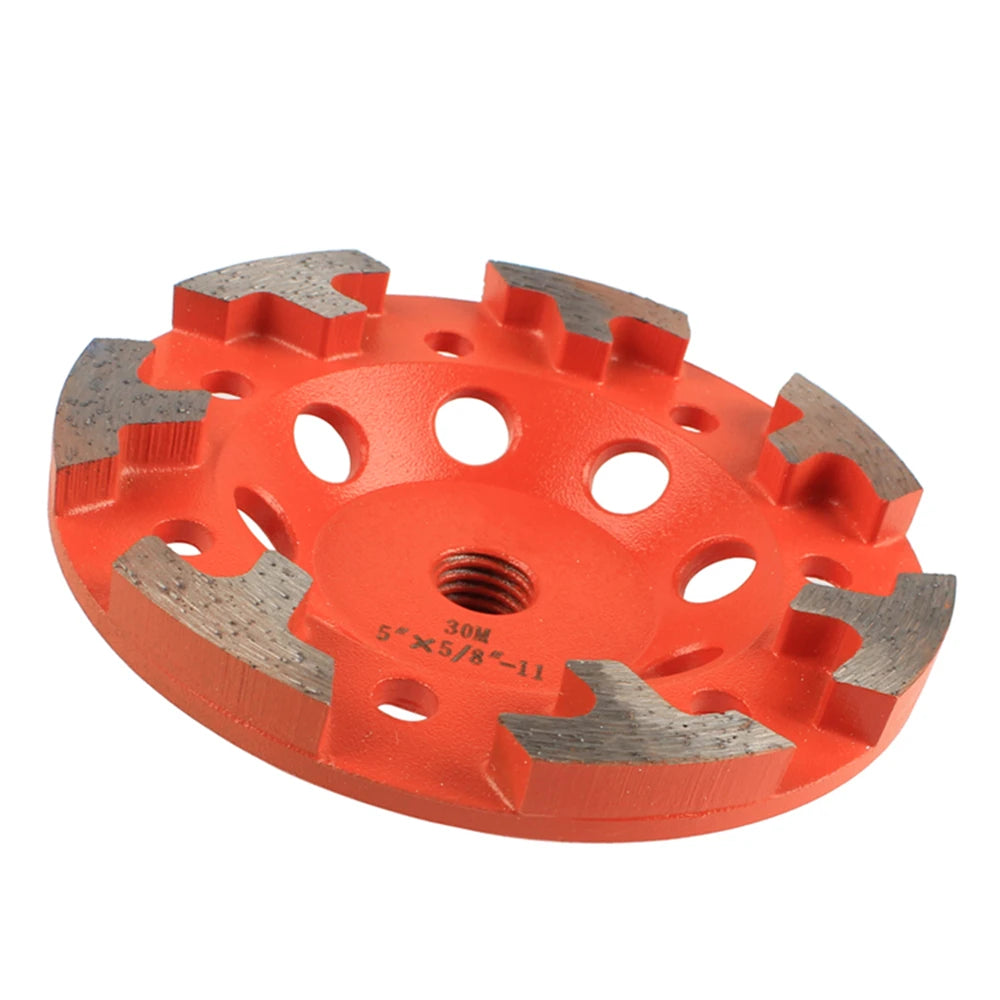

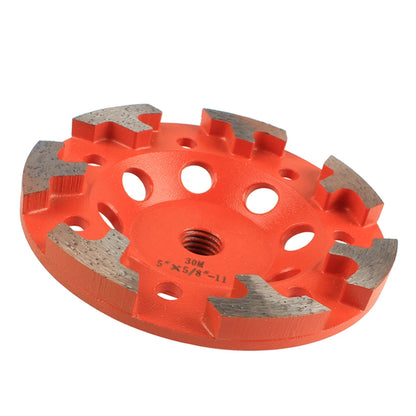

5 Inch Disc-7 T Shape Segments
6 Inch Disc-9 T Shape Segments

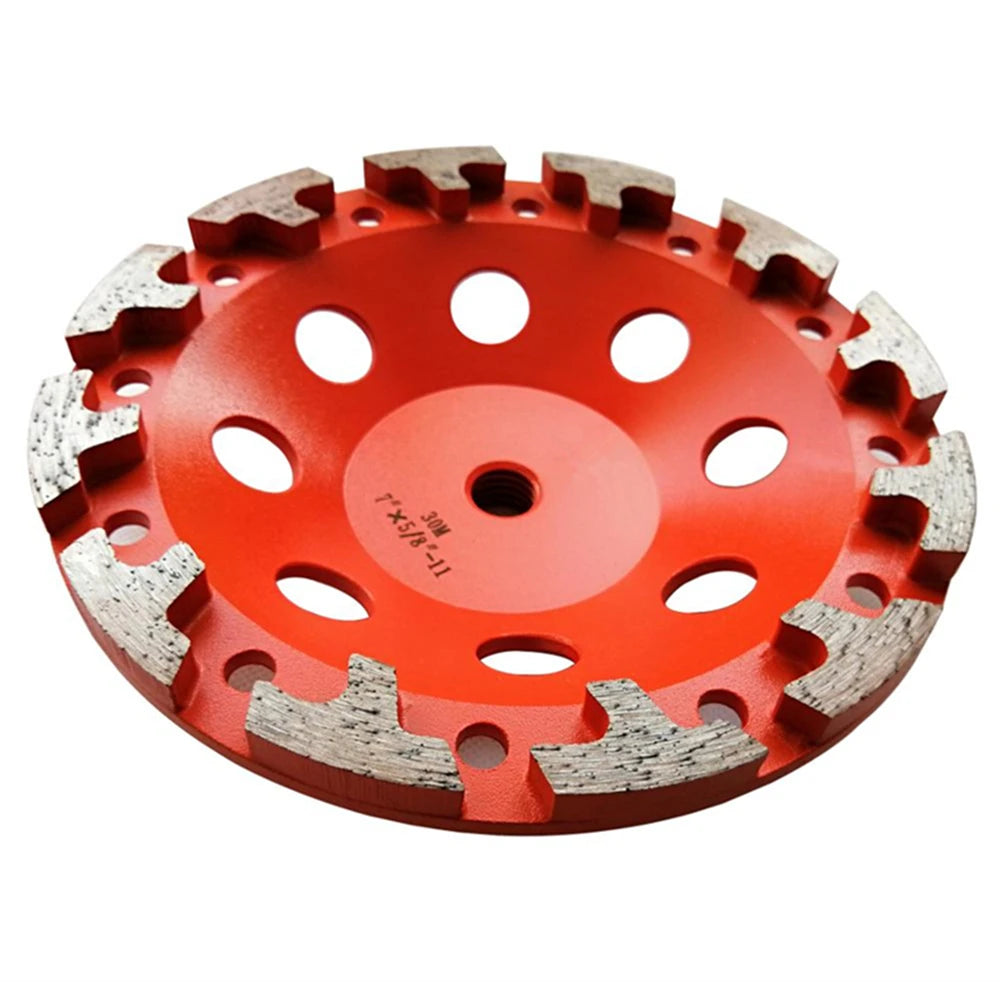

7 Inch Disc-12 T Shape Segments
Bore: M14, 5/8"-11 Thread Holes or 22.23mm Bare Holes
Bond Available: Soft Bond, Medium Bond, Hard Bond
Grits Available: Coarse, medium, fine ( grits 16- 270#) as requested
Metal bond diamonds have high strength, excellent wear resistance, and a low friction coefficient. Metal bond diamonds high grinding efficiency and low grinding force generates less heat in the grinding process.
1) Coarse grit: 16#,24#,30#,36# etc.
Could be used for un-even concrete floors , rough grinding preparation on floor or old floor renovation .
2)Medium grits: 50/60# , 60/80# etc.
Could be used for all kinds of concrete and terrazzo floors , grinding preparation on floor or old floor renovation.
3) Fine grits: 100/120#, 120/180#, 220/270# etc.
Could be used for all kinds of concrete and terrazzo floors , find grinding preparation on floor or old floor renovation before polishing.
Surface Finishing: Color Painting
Applications: Granite, marble, concrete products, masonry material and all types of natural stone.
Machine: Angle Grinder or General Grinding Machine.
Advantages:
1. The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life.
2. Grinding segments with heat treated steel bodies which provide increases durability and wheel life.

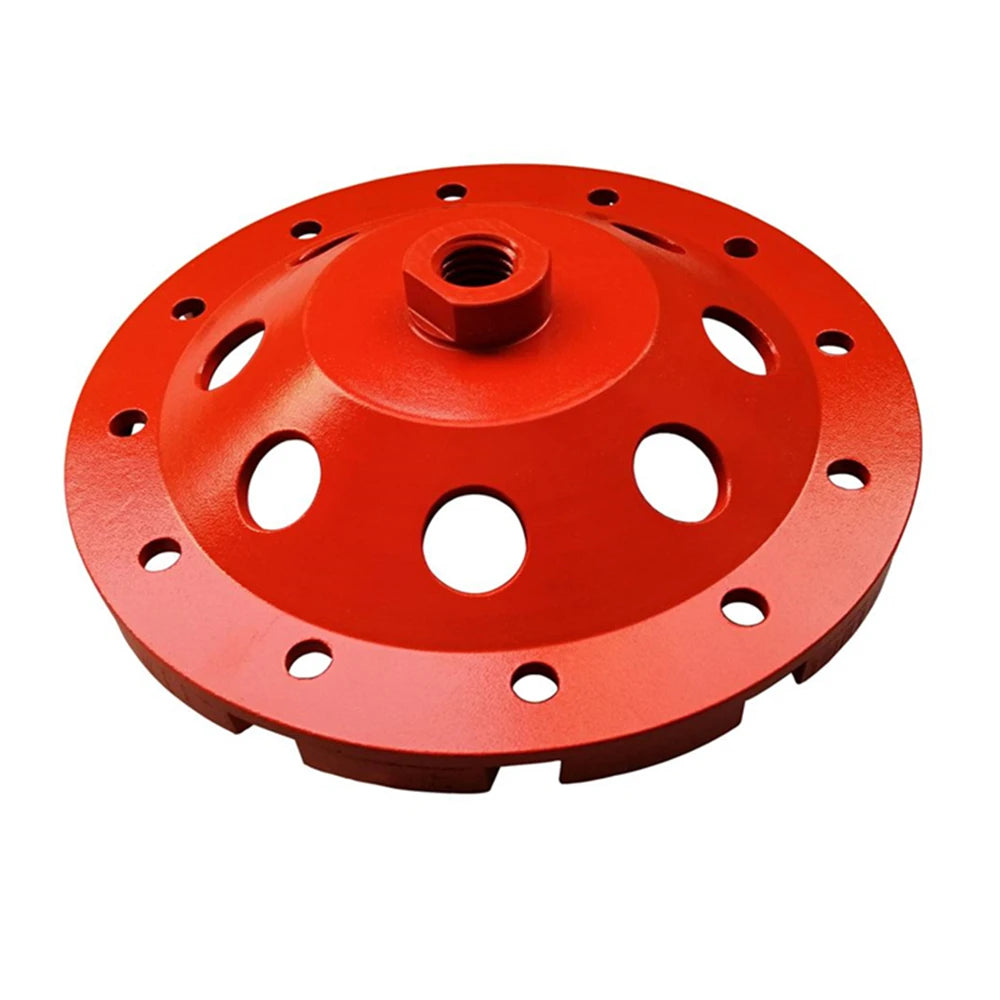

3. Venting holes for fast, dry or wet grinding with long life.
Choosing between soft, medium, and hard bonds.
Soft Bond (Yellow) – The metallic powder in the sintered segment wears away quickly releasing dull diamond crystals exposing new abrasive crystals to cut efficiently. Best used on hard surfaces.
Medium Bond (Red) – A metal bond strength right between that of soft and hard bonds.
Hard Bond (Black) – The bond of the metallic powder in the segment wears away slowly and prevents premature wear against soft, abrasive surfaces.
Connection Holes

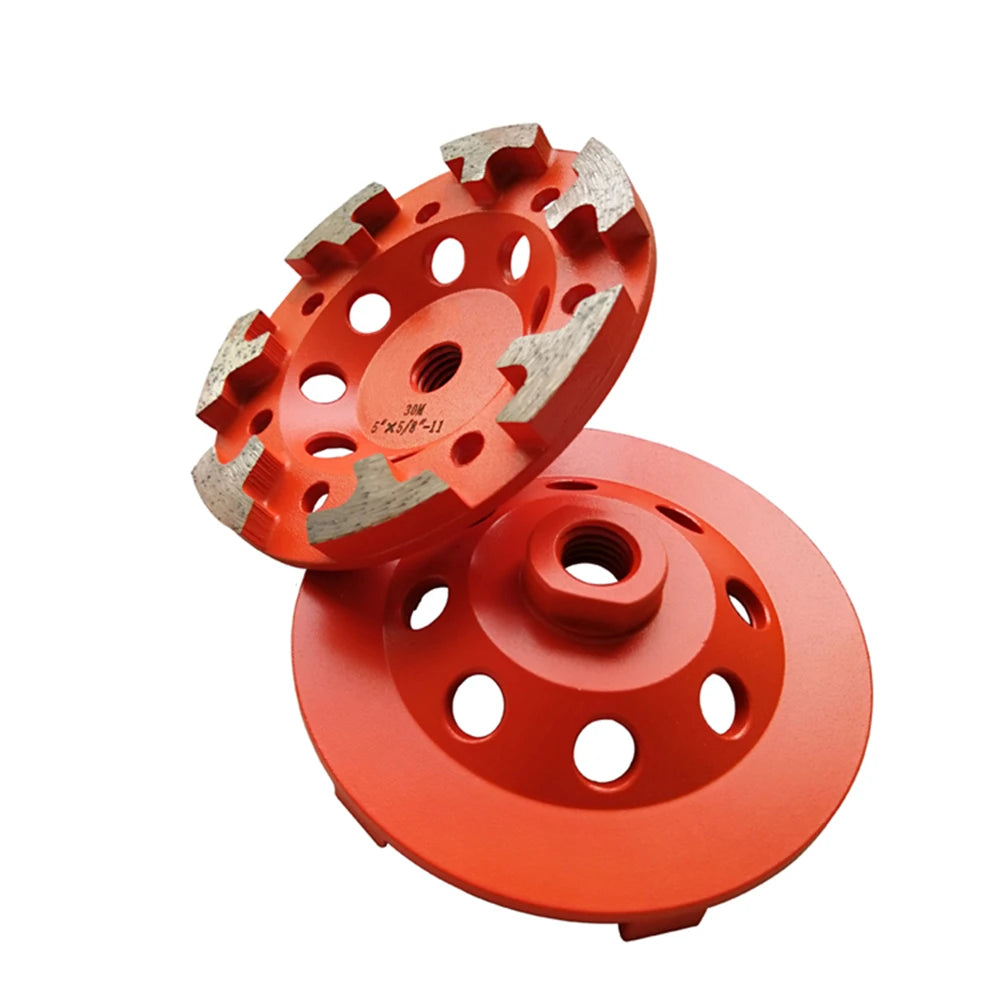

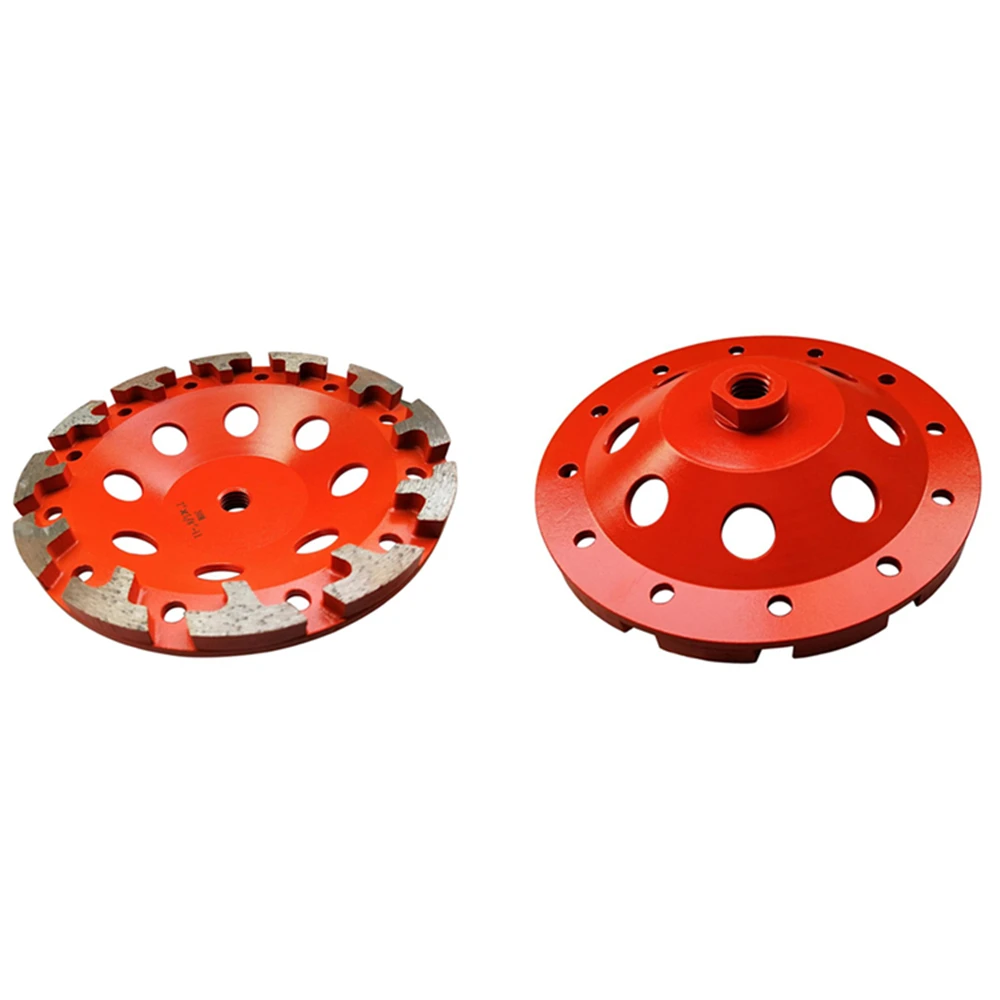

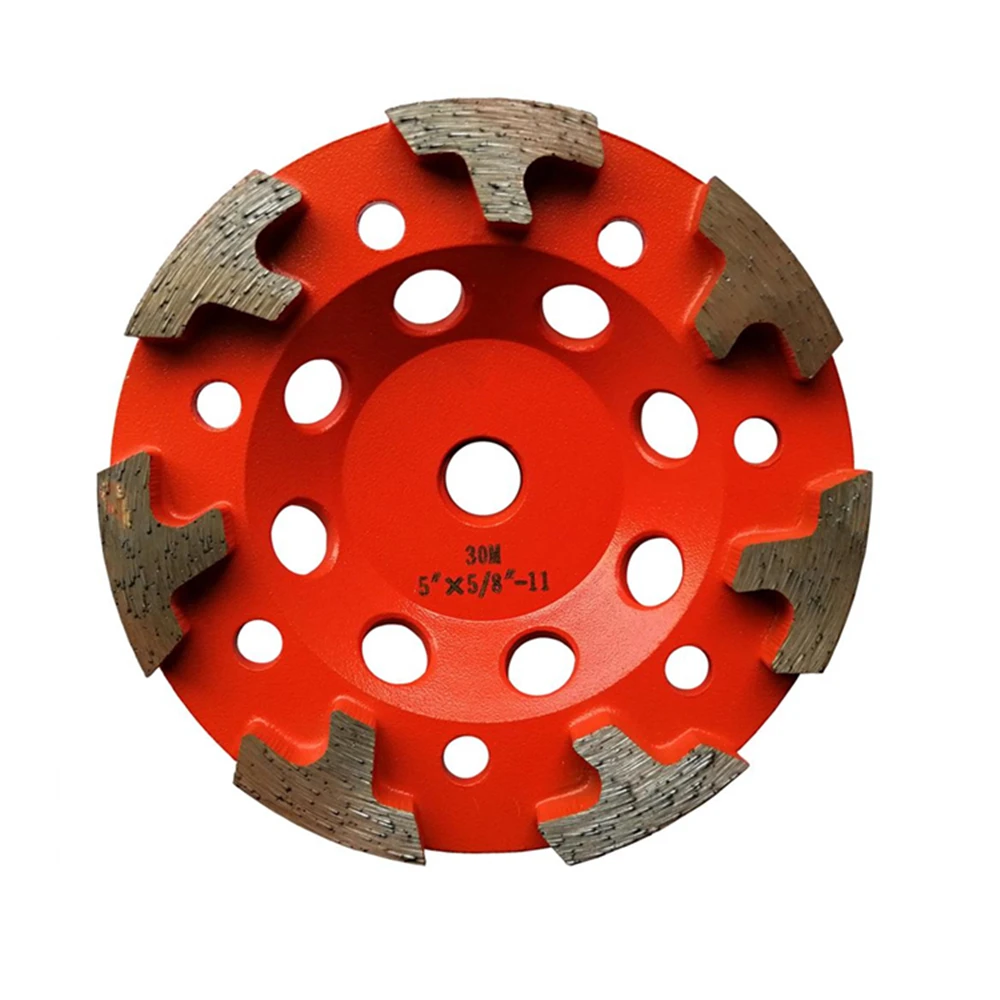

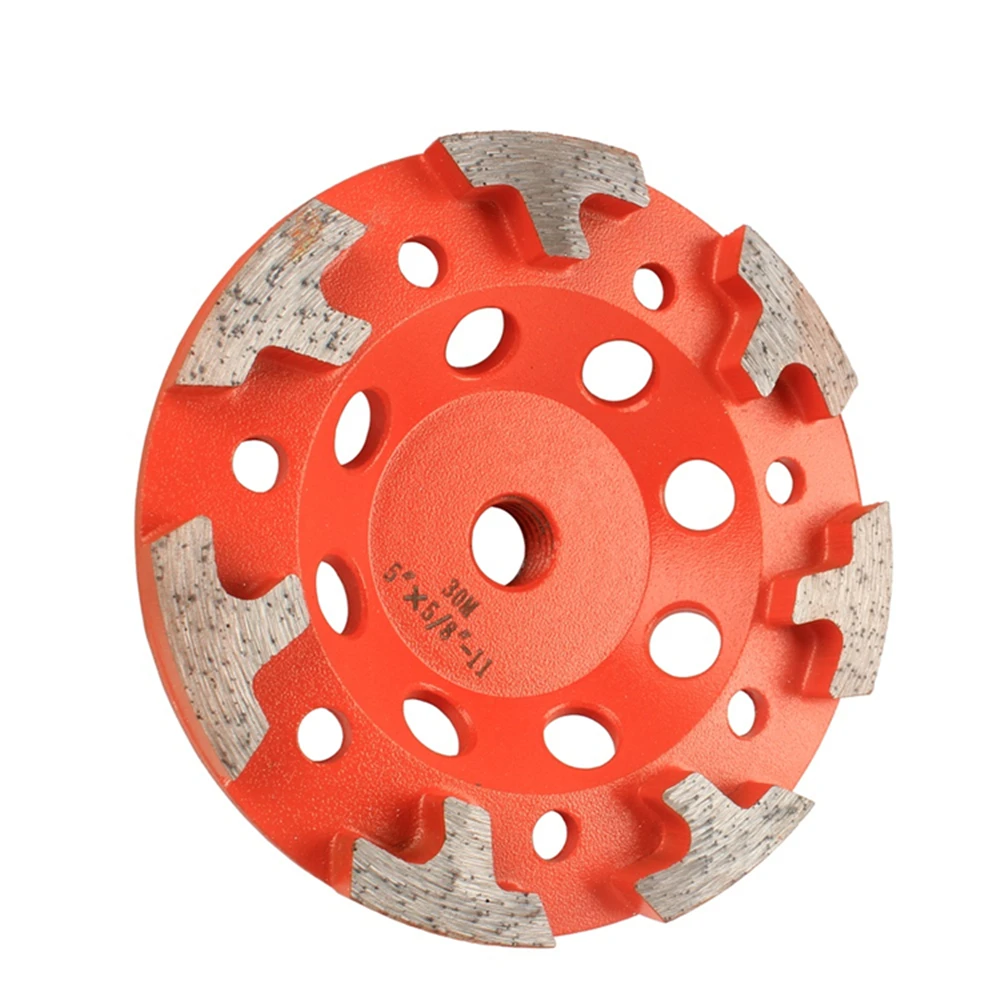

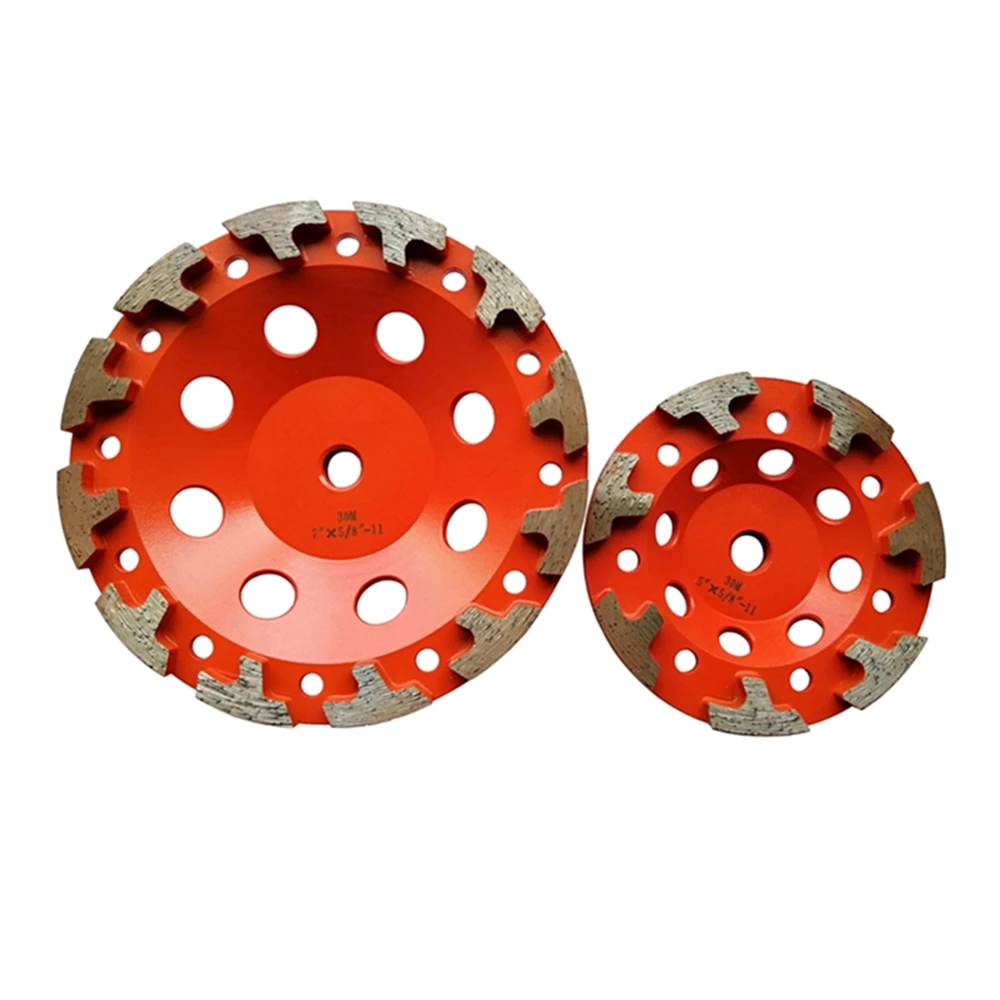

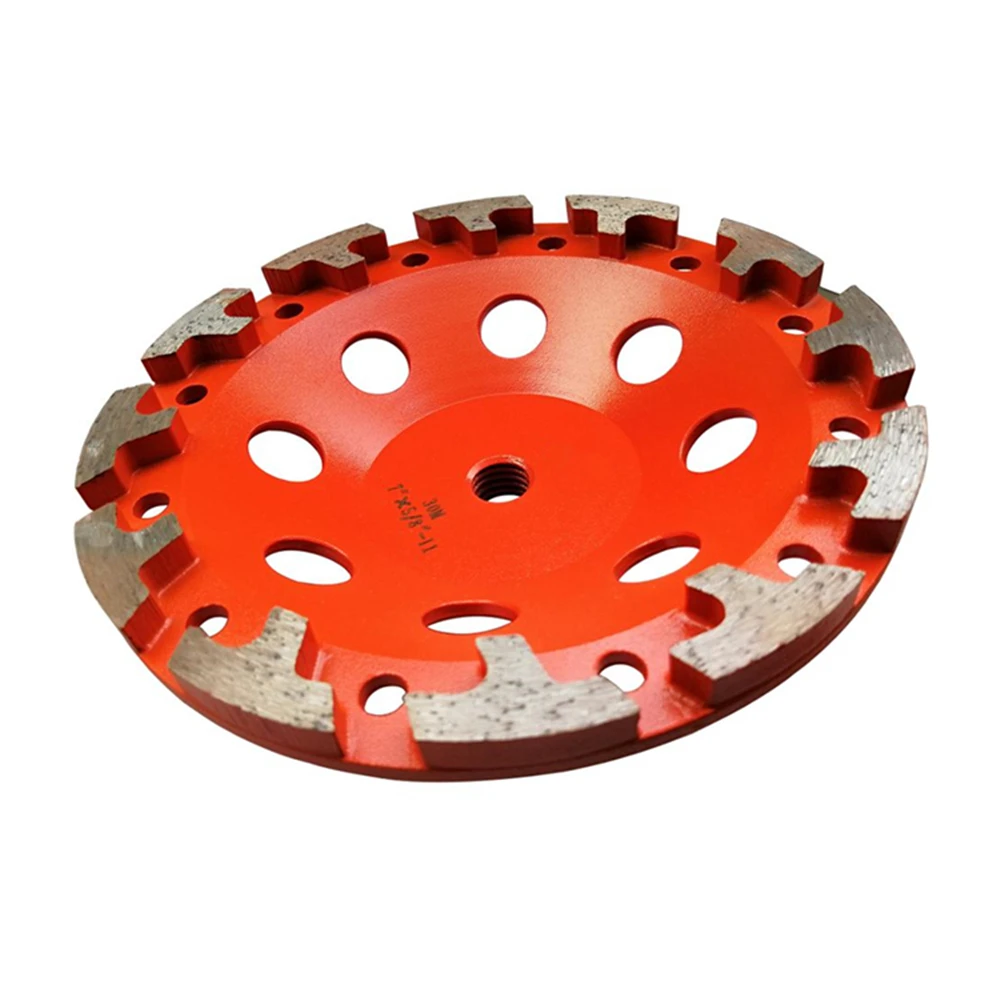

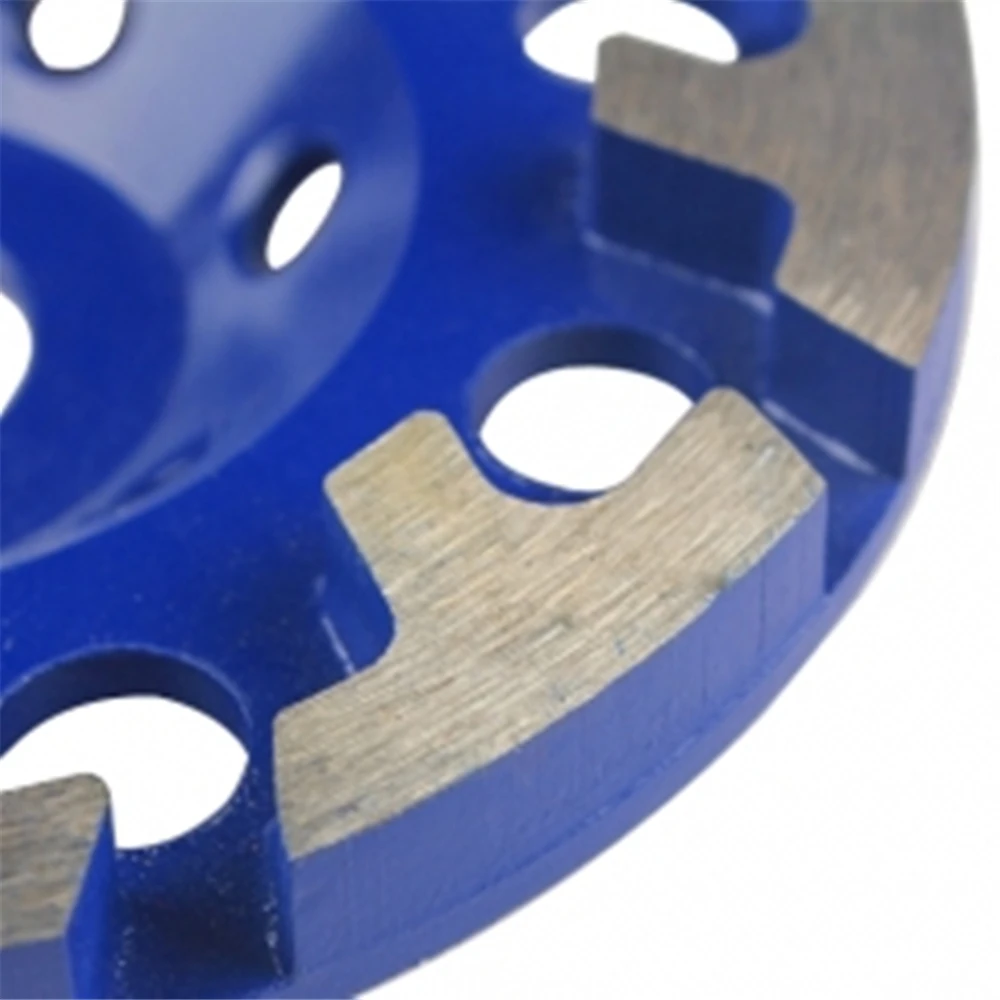

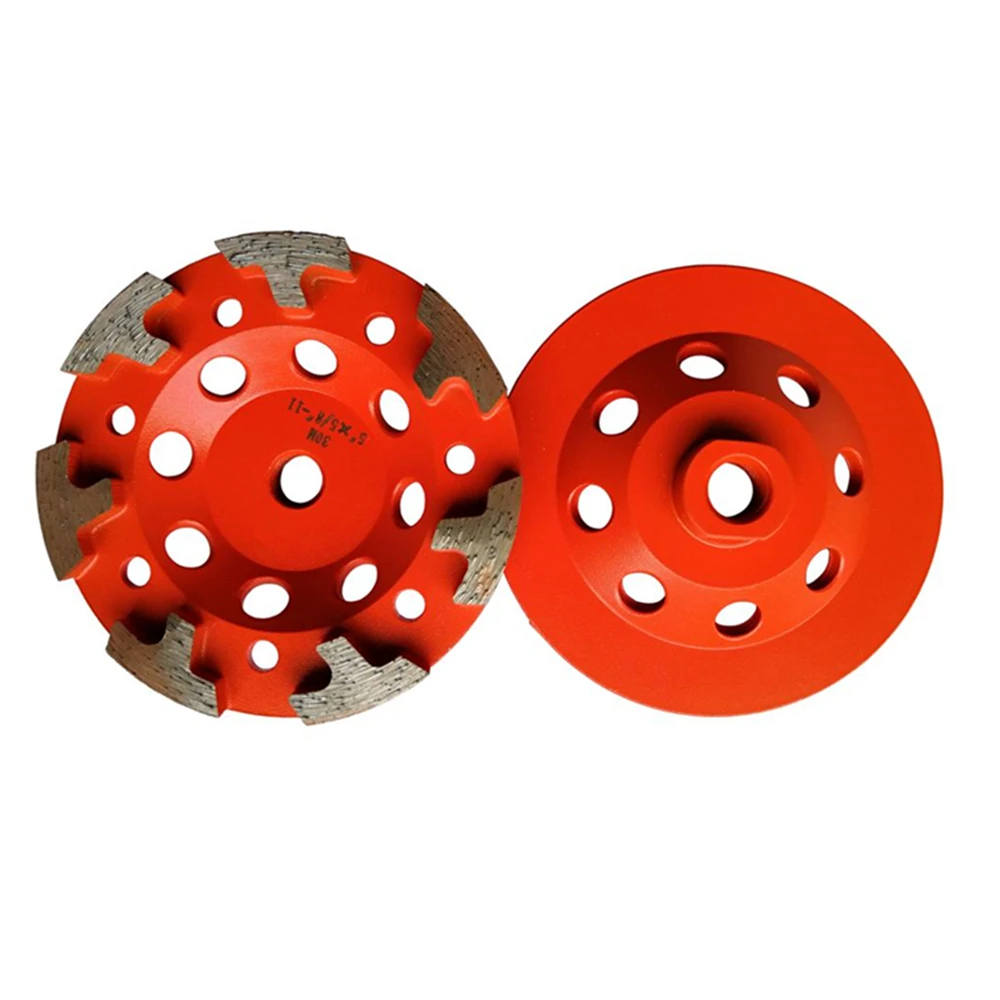

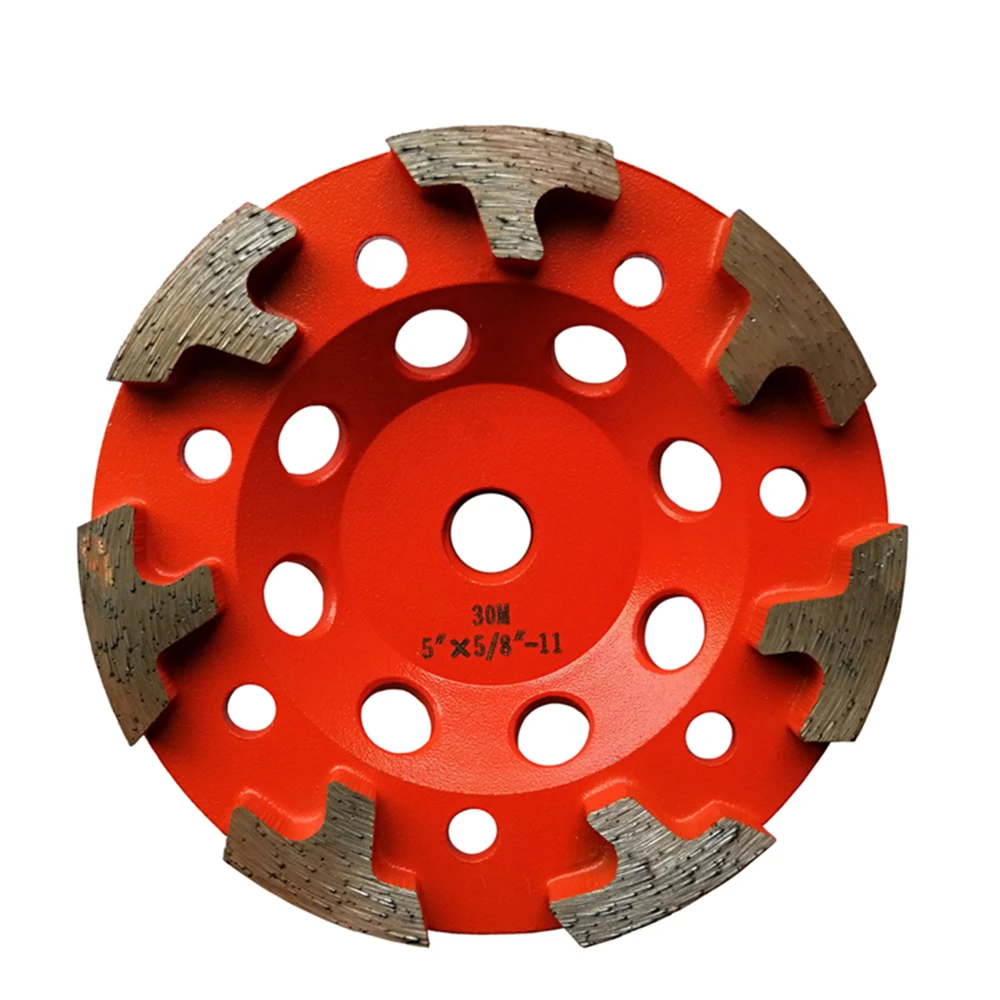

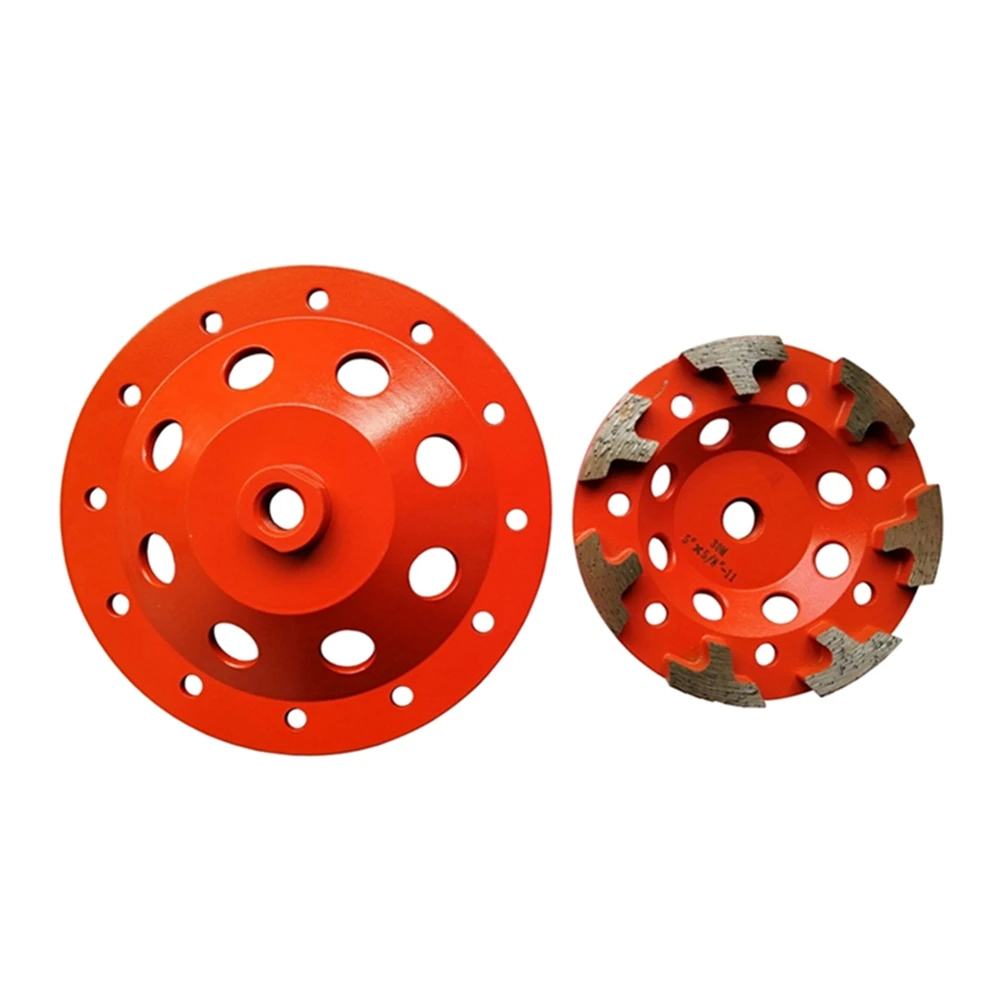

Products Show
_99799c51-4454-42fc-a6ae-c5de8456b23a.jpg)
FAQ
Q: What is the MOQ?
A: The MOQ is 9 PCS (One Set)
Q: What about the Lead Time?
A: For 1-10 Sets, the Production Time is about One Week. Mass Production Time is Need about 1-2 Weeks.
A: Yes. Please inform us formally before our production.
Q: How do you ship the goods and how long does it take to arrive?
A: For Not More Than 2 KG, We Usually Ship by China Post Air Mail or ePacket, It need about 10-25 Days. And for More Than 2 KG, We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
